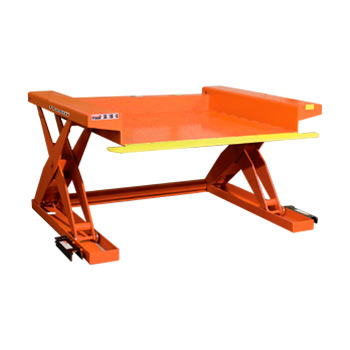

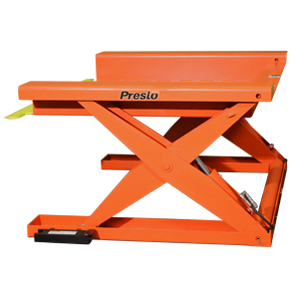

XZ Series Lifts - Floor Height Lift Tables

• Available in 2,000, 4,000 and 6,000 lb. capacities
• 35" vertical travel
• Loads can be accessed from 4 sides with minimum reach over
• External 1 HP 115/1/60 power unit
• Optional power units available
• Foot or hand-held control
• 6" flexible yellow safety toe guard
• Lifting eyes for safe positioning
• Custom designs available

Download General Catalog

Have a question or comment?

Please let us know your name.

Please let us know your email address.

Invalid Input

Invalid Input

Invalid Input

Question / Comment (*)Please let us know your message.

Enter Letters and Numbers(*)
RefreshInvalid Input

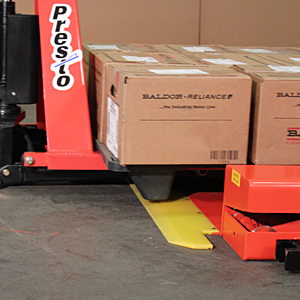

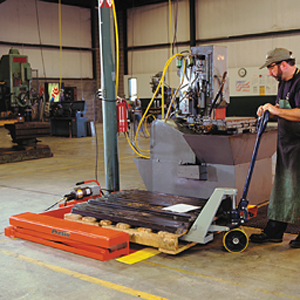

These industrial grade, hydraulic scissor lift tables feature a unique pan-style platform that sits only 3/8" above the floor when fully lowered. This low-profile design allows them to be loaded and unloaded by a hand pallet truck. Use them in facilities where fork lifts or stackers aren't available. An additional advantage of hand pallet truck accessibility is the opportunity for workers to function at their own pace without having to wait for a fork lift and certified operator to load the lifts for them. With capacities up to 6,000 lbs. and multiple platform (pan) sizes, virtually any load can be accommodated.

• Model Number	Load Capacity	Raised Height	Low Height	Platform Size	Dimensions W x L		Lifting Speed	Shipping Weight
  XZ44 Series
  XZ44-20	2000 lbs	35 ⅜"	3/8"	44 x 48"	61 ¼ x 59"	40 sec		1300 lbs
  XZ44-40	4000 lbs	35 ⅜"	3/8"	44 x 48"	61 ¼ x 59"	44 sec		1325 lbs
  XZ44-60	6000 lbs	34 ½"	1/2"	44 x 48"	65 ¼ x 59"	54 sec		1750 lbs
  XZ50 Series
  XZ50-20	2000 lbs	35 ⅜"	3/8"	50 x 48"	67 ¼ x 59"	40 sec		1400 lbs
  XZ50-40	4000 lbs	35 ⅜"	3/8"	50 x 48"	67 ¼ x 59"	44 sec		1425 lbs
  XZ50-60	6000 lbs	34 ½"	1/2"	50 x 48"	67 ¼ x 59"	54 sec		1850 lbs

  OPTIONS & ACCESSORIES

  • BELLOWS ACCORDION SKIRTING
  • PORTABILITY CHAINS
  • AIR POWER UNIT & CONTROLS
  • PHOTOEYE TOE PROTECTION
  • ONE TOUCH AUTO-LEVELING
  • CONTROL PANEL

  • BELLOWS ACCORDION SKIRTING


    Encloses sides and ends of both scissor legs and the full width of the back side of the platform. Black and yellow 3" vinyl pleats.

  • PORTABILITY CHAINS
    For moving empty lift with a fork truck or pallet jack.

  • AIR POWER UNIT & CONTROLS
    In lieu of standard 115/1/60 electric power unit.

  • PHOTOEYE TOE PROTECTION
    In place of standard flexible lip. Lift will not lower when light beam is broken.


  • ONE TOUCH AUTO-LEVELING
    Lift platform will raise or lower a preset increment at the touch of a button. This is especially helpful in palletizing applications where box dimensions remain constant from load to load


  • CONTROL PANEL (Linestarter/Transformer)
    For use with 3 phase primary voltage (ships loose).
