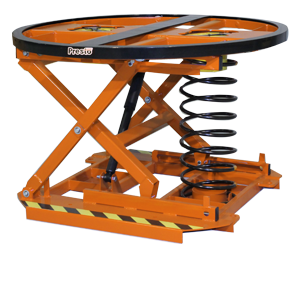

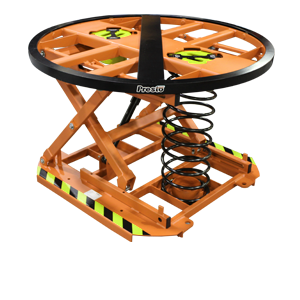

P3 All-Around Spring Load Leveler

• Tubular steel frame holds loads up to 4,500 lbs
• Heavy-duty springs automatically adjust pallet height
• Dampener provides smooth, gradual raising and lowering, without overshoot or bounce
• Integrated turntable ring
• Phenolic frame cover (optional)
• Fork pockets for relocation by fork truck
• No lagging necessary
• Leveling feet (optional) allow use on sloping or uneven floors

Download General Catalog

Download P3 Flyer

Have a question or comment?

Please let us know your name.

Please let us know your email address.

Invalid Input

Invalid Input

Invalid Input

Question / Comment (*)Please let us know your message.

Enter Letters and Numbers(*)
RefreshInvalid Input

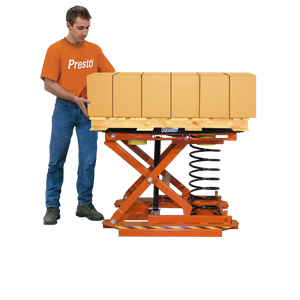

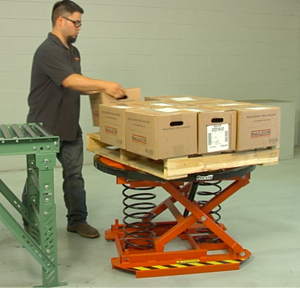

P3 Spring Load Levelers improve the efficiency and productivity of manual pallet loading and unloading operations. A system of springs and shock absorbers lower or raise loads as boxes are added or removed from pallets.   The built-in turntable ring allows workers to spin the load so that work is always being done on the nearside P3 Spring Load Leveler are completely automatic and require no power or air supply to operate. Pallet loads up to 4,500 lbs can be handled.

• Model Number	Load Capacity	Raised Height	Lowered Height	Overall Base W x L	Turntable Diameter	Shipping Weight
  Pallet Positioner
  P3 Spring	4500 lbs	28"	9 ½"	36 x 36"	43 ⅝"	460 lbs

  OPTIONS & ACCESSORIES

  • SOLID DISC COVER
  • FORK POCKET CASTER KIT
  • LEVELING FEET
  • BELLOWS / ACCORDIAN SKIRTING
  • ACCESS STEP
  • SQUARE TURNTABLE PLATFORMS
  • SPECIAL FINISHES / MATERIALS

  • SOLID DISC COVER

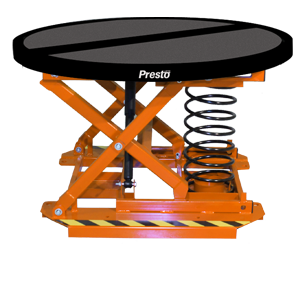

    Solid steel disc cover in place of open turntable ring. Ideal for damaged pallets or small / odd sized pallets or skids.


  • FORK POCKET CASTER KIT
    Mounts under unit in fork pockets to allow palletizer to be portable. A foot operated floor lock keeps the unit from rolling when in use.

  • LEVELING FEET
    For use on uneven or damaged floors. 4 adjustable screw feet can be independently adjusted to ensure the palletizer is perfectly level.


  • BELLOWS ACCORDIAN SKIRTING
    Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.
  • ACCESS STEP
    Handy step slips into fork channels to give shorter workers better access to the top of loads. Non-skid surface.
  • SQUARE TURNTABLE PLATFORMS
    Units can be equipped with a square turntable instead of the standard ring. Use with small or odd shaped skids or pallets.
  • SPECIAL FINISHES / MATERIALS
    Presto P3 Palletizers are available with a variety of custom finishes including special paint colors, chemical resistant coatings, two-part epoxies, and hot-dipped galvanizing.
