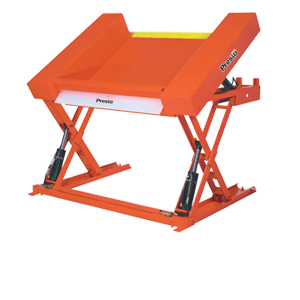

XZT Series Floor Level Lift & Tilt Tables

• Available in 2,000 or 4,000 lb. capacity
• 33" vertical travel - 30º tilt
• Yellow safety edge yields to protect worker during incidental contact
• Standard pedestal control
• Optional foot control available
• One power unit controls lift & tilt
• External 1 HP 115/1/60 power unit
• Optional power units / 3 phase power available
• Custom designs available

Download General Catalog

Have a question or comment?

Please let us know your name.

Please let us know your email address.

Invalid Input

Invalid Input

Invalid Input

Question / Comment (*)Please let us know your message.

Enter Letters and Numbers(*)
RefreshInvalid Input

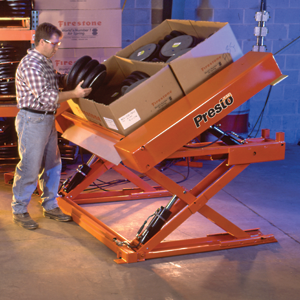

These hydraulic scissor lift tables in 2,000 or 4,000 lb. capacities lower flat to the floor allowing them to be loaded and unloaded with a hand pallet truck. They are ideal for facilities without fork lifts or stackers. They often increase worker productivity because workers can load and unload them without having to wait for a fork lift or stacker. The combination lift and tilt feature allows loads to be positioned at the most comfortable height and angle.

• Model Number	Load Capacity	Raised Height	Low Height	Degree of Tilt	Dimensions W x L		Platform Size	Lifting Speed	Shipping Weight
  XZT44 Series
  XZT44-20	2000 lbs	33 ⅜"	3/8"	30°	68 x 61"	44 x 48"		39 sec	1255 lbs
  XZT44-40	4000 lbs	33 ½"	1/2"	30°	68 x 61"	44 x 48"		43 sec	1420 lbs
  XZT50 Series
  XZT50-20	2000 lbs	33 ⅜"	3/8"	30°	74 x 61"	50 x 48"		40 sec	1420 lbs
  XZT50-40	4000 lbs	33 ½"	1/2"	30°	74 x 61"	50 x 48"		44 sec	1505 lbs
